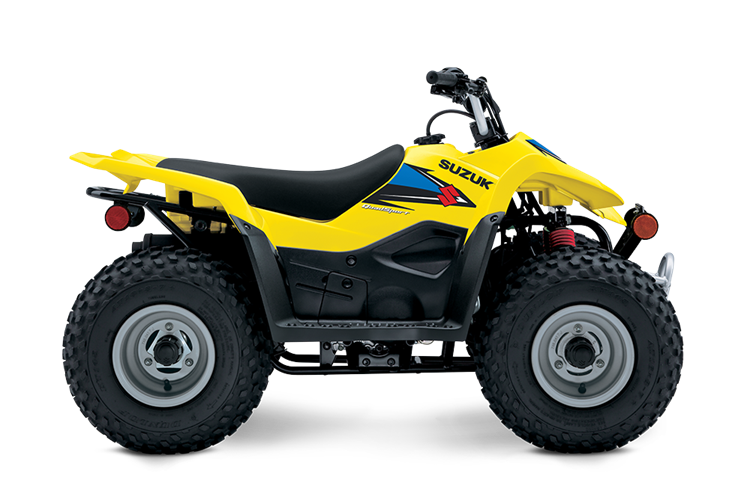

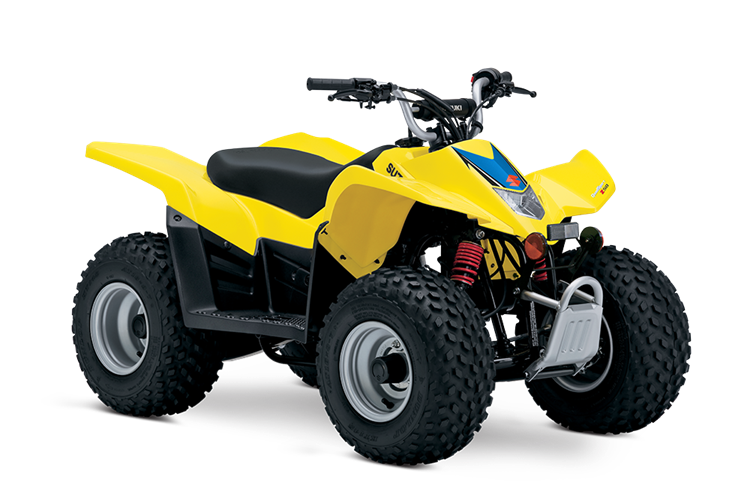

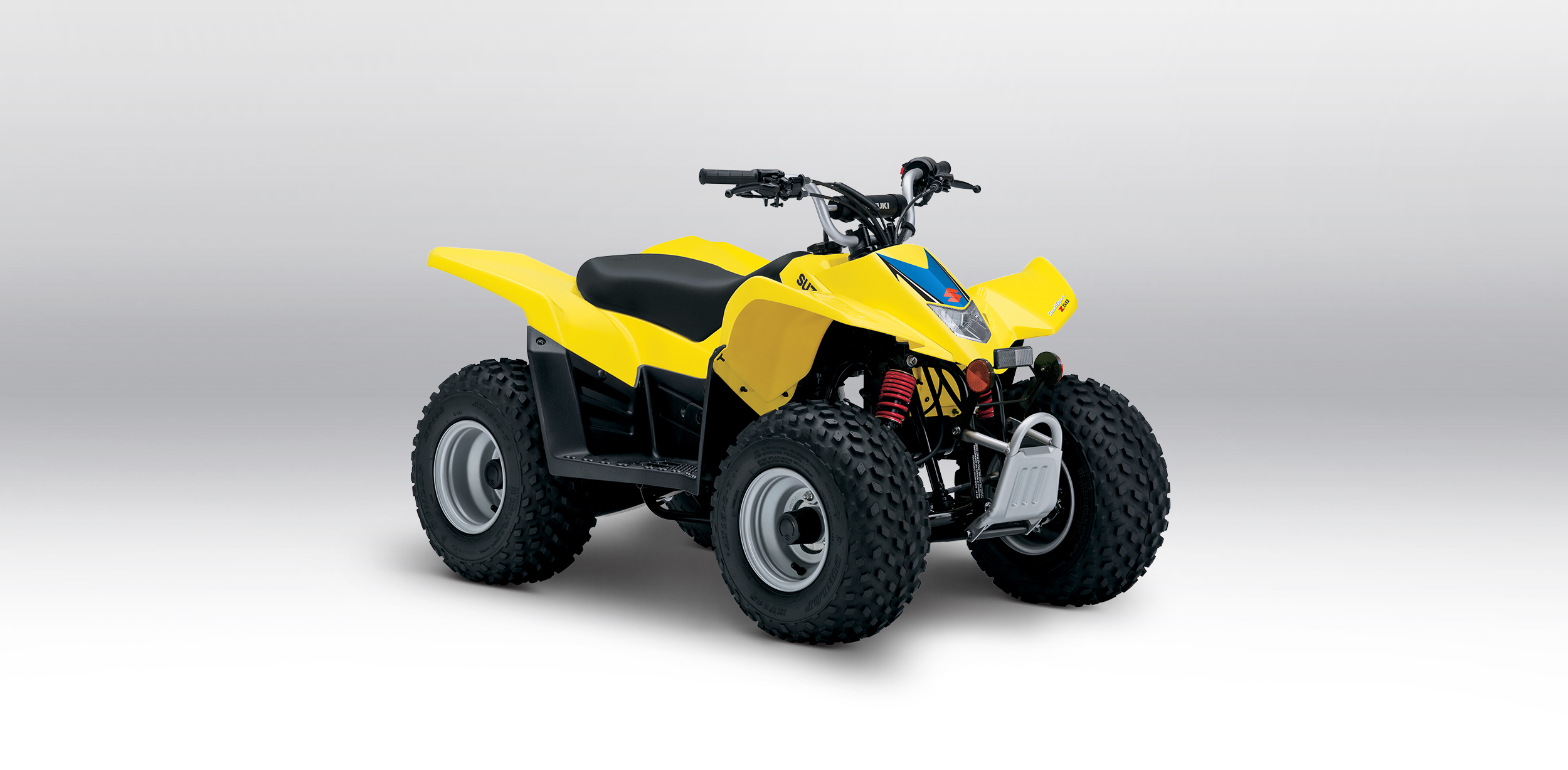

2021 QuadSport Z50

2021 QuadSport Z50 Overview

The QuadSport Z50 is designed for adult-supervised riders ages six and older and includes features that make learning to ride a safe and fun experience. With an emphasis on safety and adult control, this Quad features a throttle limiter to control engine output, a tether switch to remotely shut off the ignition, and a keyed main switch that prevents unauthorized use. Adjustable hand controls, an automatic transmission, full floorboards, and a low seat height make sure that beginning riders will enjoy active convenience and control. To sum it up, the QuadSport Z50 is packed with quality,...

Features

Designed for adult-supervised riders ages 6 and older

Keyed ignition and remote, tether-type engine-stop switch

Adjustable throttle limiter controls speed

Easy electric starting, plus backup recoil starter

Smooth-running CVT automatic transmission


Compact, 49cc, four-stroke, single-cylinder, air-cooled engine has been designed for durability and low maintenance.

Efficient, push-rod valve train lets the engine operate quietly. Easy-access oil filter and filler cap simplify service.

Clean-burning, four-stroke engine easily achieves Environmental Protection Agency (EPA) emissions regulations (eligible for red-sticker registration in California).

Includes an easy electric starting system plus a standard back-up recoil starter.

Smooth-running CVT automatic transmission provides easy operation and allows the rider to focus on riding instead of shifting.

A keyed ignition switch lets grown-ups decide when the action begins and ends.

Simple screw-type throttle limiter allows adult supervisors to limit the maximum power delivery to suit the rider's ability.

Remote, tether-type engine stop switch allows adult supervisors to instantly shut down the engine when necessary.

Spark-arrestor equipped muffler is environmentally friendly, yet has a pleasant exhaust note.

Suitable capacity 0.7-gallon (2.7-liter) fuel tank for long riding time combined with a vacuum fuel petcock that automatically stops fuel flow when the engine’s not running.


Child-size (Y-6) controls allow easy operation.

Strong, high-rigidity steel frame is sturdy and compact.

Independent swingarm front suspension with coil-over shock absorbers and a single-shock rear suspension provide long wheel travel for a smooth, comfortable ride.

Large-diameter, semi-sealed front drum brakes and single fully-sealed rear drum brake provide strong braking performance.

Modern styling with full floorboards and a big Quad look also features brilliant yellow bodywork with black and red graphics.

Faux headlamp on front fender mimics the sporty look of the QuadSport Z400.

One-piece, seven-inch wheels with tubeless tires provide a smooth comfortable ride.

Low seat height of just 21.1 inches makes it easy for the rider to get on the ATV and operate it with confidence.

Suzuki T-shaped seat design is similar to the QuadSport Z400’s for smooth weight transition and a comfortable ride. The seat is easy to remove for service. Textured seat cover complements the ATV’s graphics package.

Competition-inspired bodywork and Suzuki Champion Yellow color scheme.


12-month unlimited mileage limited warranty. Longer coverage and other benefits available through Suzuki Extended Protection (SEP).*

*Subject to separate coverage for certain parts and the exclusions and limitations described in the New ATV Limited Warranty.

A variety of Genuine Suzuki Accessories for QuadSport owners are available, including a large selection of Suzuki logo apparel.

Minimum age: 6 years old.


Specifications

  • Engine49cc, 4-stroke, air-cooled, single cylinder
  • Bore x Stroke36.0 mm x 48.6 mm (1.417 in. x 1.913 in.)
  • Compression Ratio8.4:1
  • Fuel SystemMikuni VM13, single carburetor
  • StarterElectric and back-up recoil
  • LubricationWet sump
  • TransmissionCVT automatic
  • ClutchDry shoe, automatic, centrifugal type
  • Driven Wheels2WD
  • Final DriveChain, DID 415, 82 links
  • Suspension FrontIndependent, swing axle, coil spring, oil damped
  • Suspension RearSwingarm type, coil spring, oil damped
  • Brakes FrontTwin drum brakes
  • Brakes RearSingle drum brake
  • Tires FrontAT16 × 8-7, tubeless type x 2
  • Tires RearAT16 × 8-7, tubeless type x 2
  • Fuel Tank Capacity0.7 US gal. (2.7 L)
  • ColorChampion Yellow No. 2
  • IgnitionElectronic ignition (CDI)
  • HeadlightN/A
  • Tail LightN/A
  • Overall Length1270 mm (50.0 in.)
  • Overall Width760 mm (29.9 in.)
  • Overall Height765 mm (30.1 in.)
  • Wheelbase830 mm (32.7 in.)
  • Ground Clearance120 mm (4.7 in.)
  • Seat Height535 mm (21.1 in.)
  • Curb Weight79 kg (174 lb.)
  • Warranty12-month unlimited mileage limited warranty
  • ExtensionLonger coverage periods with other benefits are available through Suzuki Extended Protection (SEP)
