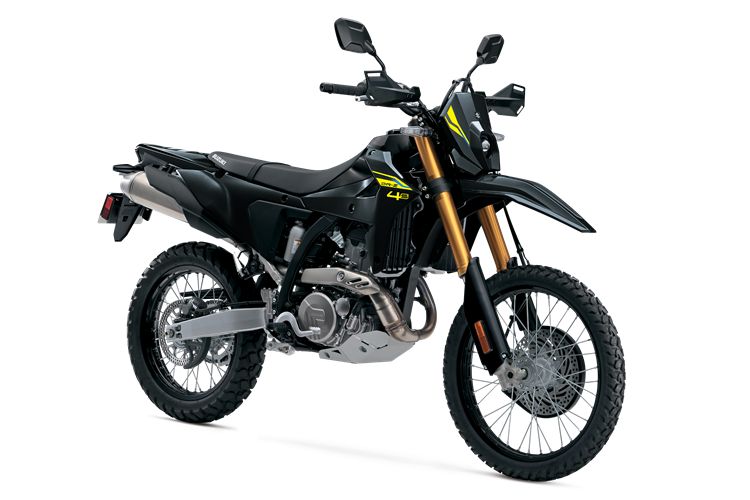

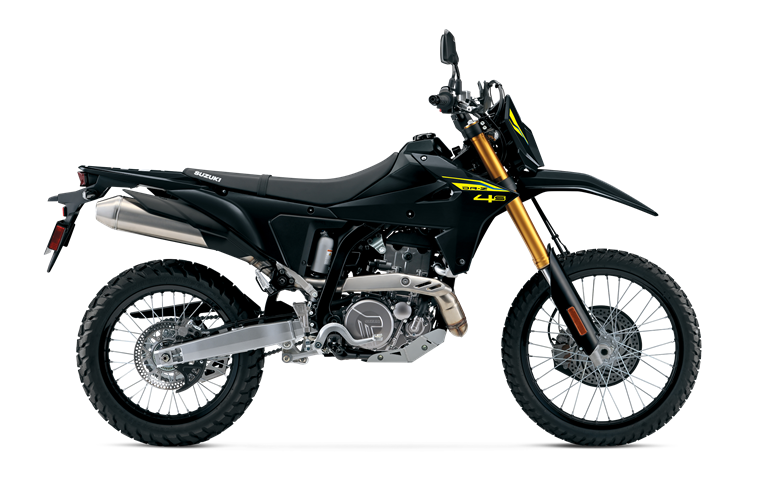

Model shown with optional accessories.

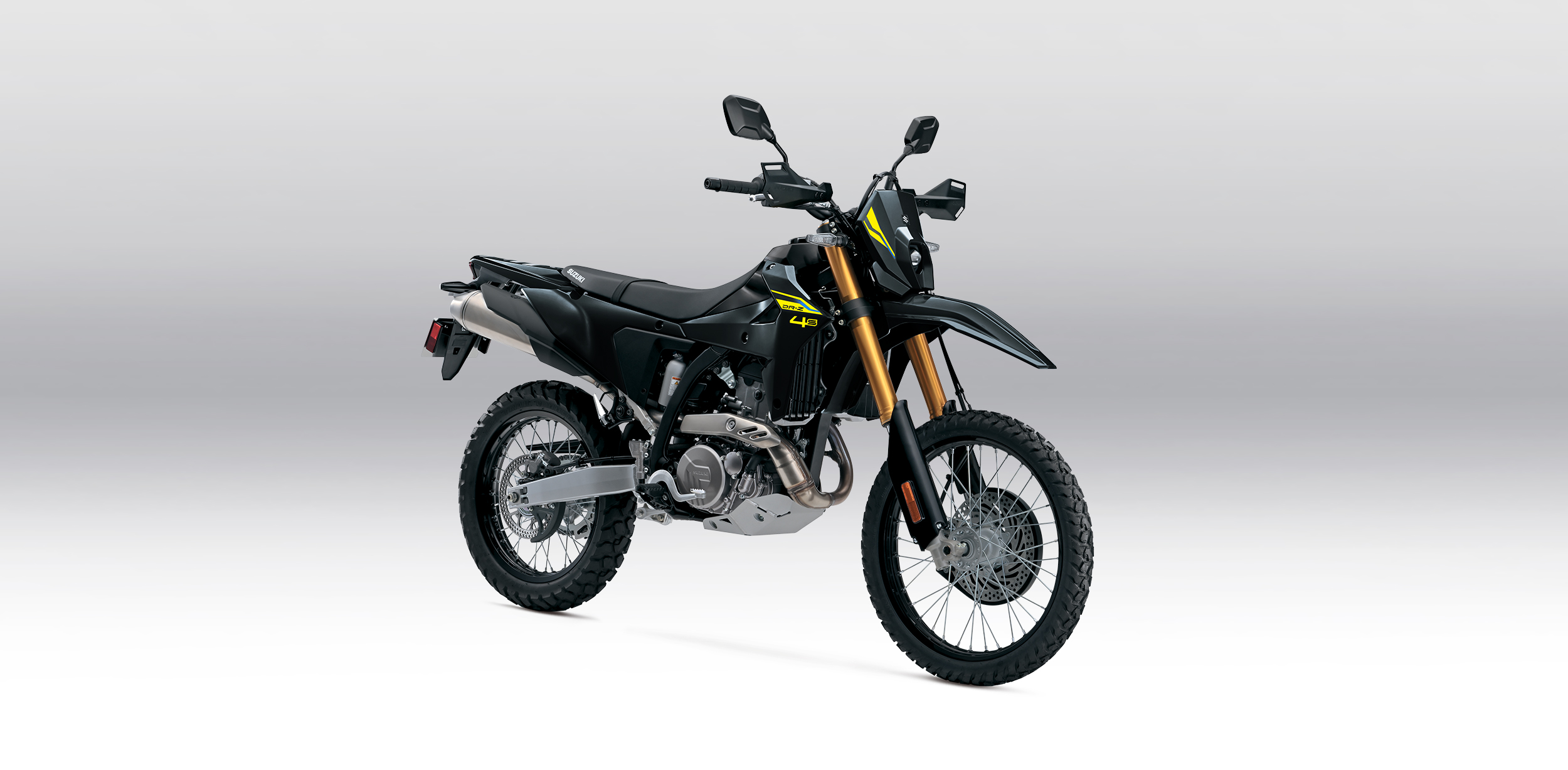

2027 DR-Z4S+
2027 DR-Z4S+ Overview
For years, street and DualSport riders have chosen the Suzuki DR-Z400S, making this fun-to-ride and economically sound motorcycle a favorite mount for navigating forest trails, long range Adventure tours, or simply riding around town. Fans of DR-Z400S wanted their motorcycle to maintain its character and performance but gain new Suzuki technology and features. Suzuki complied with a new, modern dual sport that tapped into the DR-Z legacy and had key accessories preinstalled; the DR-Z4S+.
To ensure a continuing heritage, the development of the DR-Z4S and the DR-Z4S+ includes...
Model Colors
Payment Calculator
Enter a loan amount and other information to estimate your monthly payment.
Features
The DR-Z4S+’s engine complies with the latest emissions, sound, and fuel consumption regulations, while delivering the same proven, satisfying level of performance. High-lift camshafts with reduced overlap press upon titanium intake valves and hollow sodium-filled exhaust valves helps create smooth and linear engine performance.
Equipped with Electronic Fuel Injection, the DR-Z4S+’s engine is fed through an electronically controlled (Ride-by-Wire) 42mm throttle body with a 10-hole injector that maximizes fuel atomization to help improve combustion efficiency and lower fuel consumption. The EFI helps improve engine response, idle speed control and peak power output, while also contributing to easier starts.
The Suzuki Intelligent Ride System (S.I.R.S.) helps DR-Z4S+ riders optimize performance characteristics to suit their riding style, their experience level, and the riding conditions
The DR-Z4S+ extends the sound chassis reputation of the prior generation DR-Z400S with a steel twin-spar frame and KYB-supplied suspension.
The long-travel, fully adjustable KYB inverted front fork and rear shock absorber are easy to tune for the conditions while deep-block IRC dual purpose tires (21 in. front and 18 in. rear) provide optimum traction on paved and unpaved roads
The DR-Z4S+’s LCD instrument panel features a straightforward, legible display that supplies real-time operating information and the S.I.R.S. systems settings. Popular features include twin trip meters and a fuel level indicator. All the DR-Z4S+ lighting is low-draw LED type, including the new bifunction LED headlight that incorporates both the high- and low-beam functions into a single projector module. The stator and rotor were redesigned to increase output efficiency, ensuring adequate power for the fuel injection and electric start systems
Minimalistic and sleek, the MX-inspired styling visually confirms that the DR-Z4S+ is an off-road capable motorcycle
The DR-Z4S+’s LCD instrument panel features a straightforward, legible display that supplies real-time operating information and the S.I.R.S. systems settings. Popular features include twin trip meters and a fuel level indicator. All the DR-Z4S+ lighting is low-draw LED type, including the new bifunction LED headlight that incorporates both the high- and low-beam functions into a single projector module. The stator and rotor were redesigned to increase output efficiency, ensuring adequate power for the fuel injection and electric start systems.
Minimalistic and sleek, the MX-inspired styling visually confirms that the DR-Z4S+ is an off-road capable motorcycle. The bodywork’s emphasis on sharp, flat lines visually announces this Suzuki’s dual sport capability. Riders can choose the iconic Champion Yellow No. 2 / Solid Special White No. 2 bodywork or the Solid Black plastics that blend well with the engine and chassis components.
The DR-Z4S+ is powered by a 398cm3 single-cylinder four-valve DOHC engine that delivers a smooth, controllable spread of torque from low RPM up through peak power.
The DR-Z4S+ cylinder head features Suzuki’s Dual Spark Technology, utilizing two iridium spark plugs, for greater spark strength and longevity.
Equipped with an Electronic Fuel Injection (EFI) system, the engine is fed through an electronically controlled throttle body with a 42 mm bore and a 10-hole injector that helps maximize fuel atomization for better combustion efficiency.
Like a GSX-R, the DR-Z4S+’s shim-under-bucket valve adjustment system has long service intervals.
The camshaft profiles use high intake valve lift and optimized valve overlap, contributing to superb engine performance and world-wide emissions compliance.
The valve spring rates match the high lift of the camshafts.
The DR-Z4S+ cylinder head features Suzuki’s Dual Spark Technology, utilizing two iridium spark plugs, for greater spark strength and longevity. This helps improve combustion efficiency at low engine speeds, strengthening the power delivery, while bringing easy engine starts with a smooth, consistent idle.
The piston’s roundness and skirt shape was optimized to reduce mechanical loss and engine sounds.
The Suzuki Composite Electrochemical Materials (SCEM) cylinder is durable and lightweight and provides superior heat transfer.
The combination of piston and crankcase designs reduces mechanical loss by up to 20% (as compared to the prior generation DR-Z400S). This smooths engine operation, increasing power output and fuel economy.
Changes were made to the engine’s crankcase, cylinder head and other components for optimal mounting into the twin-spare frame. The engine covers were redesigned for durability while presenting a modern appearance.
The crankcase was also refined to reduce horsepower-robbing pumping loss and oil agitation.
Carried over from the DR-Z400S to the DR-Z4S+ is the dry sump lubrication system, which contributes to a compact engine design that provides ample ground clearance and a low center of gravity.
Equipped with an Electronic Fuel Injection (EFI) system, the engine is fed through an electronically controlled throttle body with a 42 mm bore and a 10-hole injector that helps maximize fuel atomization for better combustion efficiency.
This Ride-by-Wire throttle body system helps achieve a good balance between idle speed control and peak power output, while also contributing to emission standards compliance.
The EFI system provides easy starts, especially when the engine is cold, and continually monitors throttle position/engine speed and adjusts ignition timing to maintain efficient combustion.
By achieving an ideal fuel-air ratio, the engine provides good response as the rider opens the throttle.
Another benefit of the precise Ride-by-Wire operation is that it helps customize the engine’s output through the Suzuki Intelligent Ride System’s (S.I.R.S.) Suzuki Drive Mode Selector (SDMS) feature that allows the rider to tune the engine’s power delivery characteristics to the conditions and riding style.
Every aspect of the new air cleaner box design was studied and updated, including its capacity and outlet shape, to improve intake air flow. The length of the inlet tube and the diameter of its mouth were designed to balance the intake air sounds and the engine’s needs to generate sharp throttle response and powerful low-speed torque.
The left body cover has a quick-release fastener, and swings open like a door, providing easy access to the air filter element.
The stainless-steel exhaust system features a double-wall silencer design that helps shield the rider’s legs from heat, while contributing to the DR-Z4S+’s slim profile.
The stainless-steel head pipe, mid-section, and exhaust silencer have a brushed finish, which enhances and style.
The use of a PAIR (air supply) system to the exhaust helps the motorcycle achieve emissions compliance without affecting performance.
Simple electric starting via a lightweight starter motor with an automatic mechanical decompression system.
A large, thermostatically controlled cooling fan is mounted to the left radiator to help maintain a consistent operating temperature.
The DR-Z4S+ continues the precise, nimble handling, and easy maneuverability reputation of the prior generation DR-Z400S. It builds upon this reputation with a steel twin-spar frame and KYB-supplied suspension.
The compact, five-speed transmission utilizes a cable-operated clutch with a separate outer cover for simplified clutch maintenance.
The Suzuki Clutch Assist System (SCAS) manages the transmission’s output. This system works like a slipper clutch by allowing a small amount of clutch slip under deceleration for smoother downshifts. The SCAS also works as an assist clutch, increasing plate pressure under acceleration, but always keeps the clutch lever’s pull light and precise.
The transmission’s output is managed by the Suzuki Clutch Assist System (SCAS). This system works like a slipper clutch by allowing a small amount of clutch slip under deceleration for smoother downshifts. The SCAS also works as an assist clutch, increasing plate pressure under acceleration, but always keeps the clutch lever’s pull light and precise. This large-diameter, wet, multi-plate clutch uses a precise cable-activated release, providing the rider with a light pull and a superb friction-point feel.
Riding on durable steel sprockets, a strong O-ring style drive chain contains lubrication pre-packed between the pins and rollers for quiet, reliable operation.
The DR-Z4S+ continues the precise, nimble handling, and easy maneuverability reputation of the prior generation DR-Z400S. It builds upon this reputation with a steel twin-spar frame and KYB-supplied suspension.
The DR-Z4S+ provides riders an even more capable Suzuki DualSport by including key Genuine Suzuki Accessories as standard equipment:
- Rugged aluminum Skid Plate,
- Left & Right Handguards (knuckle guards)
- Front & Rear Brake Rotor Guards
The twin-spar frame is formed from steel pipe that makes it rigid, strong, and supple enough to manage rough surfaces. It also absorbs shocks to reduce their effects upon the rider, creating a chassis for a very off-road capable dual sport motorcycle.
This trim frame combines cast components with thin chrome-moly steel tubes for exceptional torsional rigidity with minimal weight.
The frame’s front downtube, and steering head gussets form the dry-sump engine’s oil tank.
The bolt-on aluminum sub-frame is comprised of cast and square tubing for low weight and excellent strength.
These essential frame and sub-frame attributes provide the DR-Z4S+ with good weight carrying capability while simplifying maintenance.
The frame and sub-frame provide a similar, ergonomically-sound riding position as the prior generation DR-Z400S.
- To better suit off-road riding, the large diameter tapered cast-aluminum handlebar is set 1.10 in. (28 mm) higher while the new, wider rider’s pegs are set 0.27 in. (7 mm) higher and 0.90 in. (23 mm) farther back, and the seat height is slightly decreased from 36.8 in. (935 mm) on the DR-Z400S to 36.2 in. (920 mm) on the DR-Z4S+.
The seat has an optimized width to improve comfort when riding on rough terrain or trails. The seat comfortably supports the rider through carefully selected foam and an exceptionally durable seat cover
Light, strong, and flexible to help damp vibration to the rider, the large diameter tapered aluminum handlebars provide a good grip position.
- The handlebar grips were changed from a full waffle to a half-waffle design to better distribute pressure across the palms while making the grips easier to hold and control.
Wide rider footpegs provide good grip to the rider’s boots when negotiating trails, whether standing or sitting.
- The footpegs vibration damping rubber inserts can be removed for increased grip, which may be helpful in slippery conditions.
The frame and fork yield rake and trail specifications of 27.5O, 109 mm (4.29 in.), delivering a balance of nimble handling and straight-line performance.
Spoke-style 21-inch front and 18-inch rear wheels with blacked-out aluminum rims are fitted with IRC GP-410 dual-purpose, tube-type tires.
- The wheels are sized to accept popular dual sport tires and are set up to accept rim-locks when a more aggressive tread pattern is used.
- Front wheel 1.60 x 21 in. with an 80/100-21M/C tire.
- Rear wheel 2.15 x 18 in. with a 120/80-18M/C tire.
The IRC GP-410 dual purpose tires feature an interior structure that were custom-engineered for the DR-Z4S and DR-Z4S+ models. Built to perform optimally, whether negotiating off-road trails or riding on roads, these tires feature large center blocks that help provide a solid grip and contribute to the model’s outstanding dirt capability.
The aluminum undercover is standard equipment that helps protect the bottom of the engine and matches the model’s rugged, off-road image.
The rear wheel uses an axially mounted, single piston caliper with a 240 mm brake rotor that is also constructed of stainless steel for good heat dissipation and durability.
- The DR-Z4S+ is fitted with axial mounted calipers because of their resistance to vibration when riding over rough terrain.
The front wheel uses a dual piston, sliding pin axially mounted caliper that grasps a 270 mm (O.D.) stainless steel brake rotor.
The fuel tank is a flush lightweight design where the side covers (radiator shrouds) cover both sides (fuel capacity is 2.3 US gal. (8.7 L)).
The rear KYB shock absorber has 11.6 in. (296 mm) of rear wheel travel with spring preload plus both compression and rebound damping force adjustments, and connects to a new, lightweight aluminum swingarm through a progressive linkage system.
The DR-Z4S+’s Anti-lock Brake System (ABS) helps make sure the braking force matches the available traction at the tire.
- The ABS Control Unit is a compact, lightweight design.
The DR-Z4S+ provides riders an even more capable Suzuki DualSport by including key Genuine Suzuki Accessories as standard equipment:
- Rugged aluminum Skid Plate
- Left & Right Handguards (knuckle guards)
- Front & Rear Brake Rotor Guards
Supplied by KYB, the long stroke (11.0 in. (280 mm)), inverted cartridge-style fork has adjustable compression and rebound damping force for smooth performance on all types of on- and off-road terrain.
The DR-Z4S+’s LCD instrument panel is light and compact, with a straightforward, legible display. This panel supplies critical real-time operating status information and keeps the rider aware of the settings for the bike’s respective systems.
The bifunction LED headlight is a unique design that incorporates both the high- and low-beam functions into one, bright projector module
The magneto (stator and rotor) was redesigned to increase power generation efficiency to ensure adequate power for the new fuel injection system and other updated electrical features
All the DR-Z4S+’s lighting is low-draw LED type, including the turn signals (white lens with amber illumination), the taillight, and license plate illumination light.
The magneto (stator and rotor) was redesigned to increase power generation efficiency to ensure adequate power for the new fuel injection system and other updated electrical features.
The proven electric start system provides convenient operation and features a lightweight starter motor and a compact, maintenance-free battery.
Suzuki Genuine Accessories provide riders with a fun and practical way to customize and personalize their DR-Z4S+.
- These accessories include a handlebar-mounted DC power socket, a low-profile seat, a cargo rack, and more.
Suzuki 12-month limited warranty. Longer coverage periods with other benefits are available through Suzuki Extended Protection (SEP).
For more details, please visit www.suzukicycles.com.
Specifications
- Engine398cc, 4-stroke, liquid-cooled, single cylinder, DOHC
- Bore x Stroke90.0 mm x 62.6 mm (3.5 in. x 2.5 in.)
- Compression Ratio11.1:1
- Fuel SystemFuel injection, 42 mm throttle body with 10-hole injector
- StarterElectric
- LubricationSemi-dry sump
- ClutchWet multi-plate, SCAS-equipped
- Transmission5-speed constant mesh
- Final DriveSealed O-ring type chain
-
Suspension FrontKYB-supplied, inverted, telescopic fork with coil spring, oil damped,
and adjustable compression/rebound damping force.
Travel: (280mm / 11.0 in.)
-
Suspension RearKYB-supplied, link type, coil spring, oil damped shock absorber,
with adjustable spring preload and compression/rebound damping force. Travel: (296 mm / 11.6 in.)
- Brakes FrontDisc brake, single 270 mm diameter stainless steel rotor
- Brakes RearDisc brake, single 240 mm diameter stainless steel rotor
- Tires Front80/100-21 M/C (51P), tube type
- Tires Rear120/80-18 M/C (62P), tube type
- Fuel Tank Capacity8.7 L (2.3 US gal.)
-
ColorChampion Yellow No. 2 / Solid Special White No. 2 (C1C)
-or- Solid Black (019)
- IgnitionElectronic ignition
- Spark PlugIridium type (x 2)
- HeadlightBifunction LED
- Tail LightLED
- Overall Length2270 mm (89.4 in.)
- Overall Width885 mm (34.8 in.) (maybe affected by dealer-installed accessories)
- Overall Height1230 mm (48.4 in.)
- Wheelbase1490 mm (58.6 in.)
- Ground Clearance300 mm (11.8 in.) (maybe affected by dealer-installed accessories)
- Seat Height920 mm (36.2 in.)
- Curb Weight151 kg (333 lb.) (maybe affected by dealer-installed accessories)
- Warranty12-month unlimited mileage limited warranty.
- ExtensionLonger coverage periods with other benefits available through Suzuki Extended Protection (SEP)
