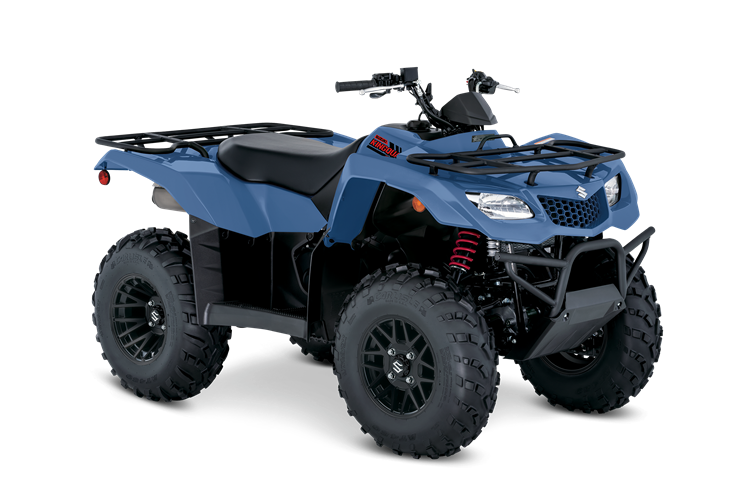

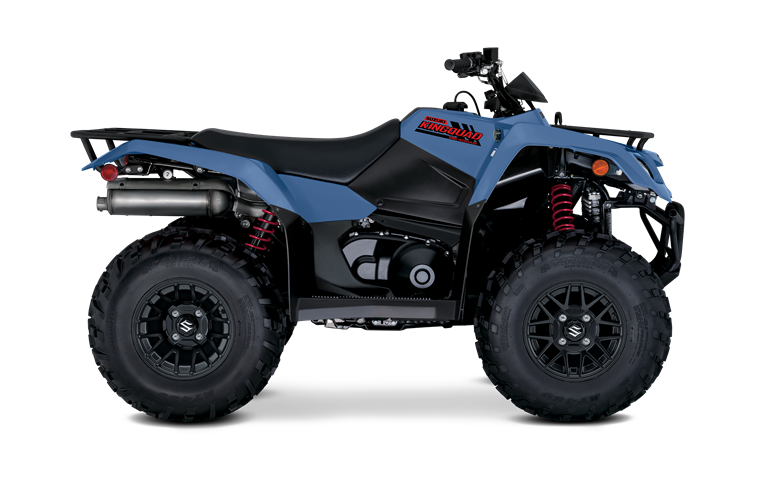

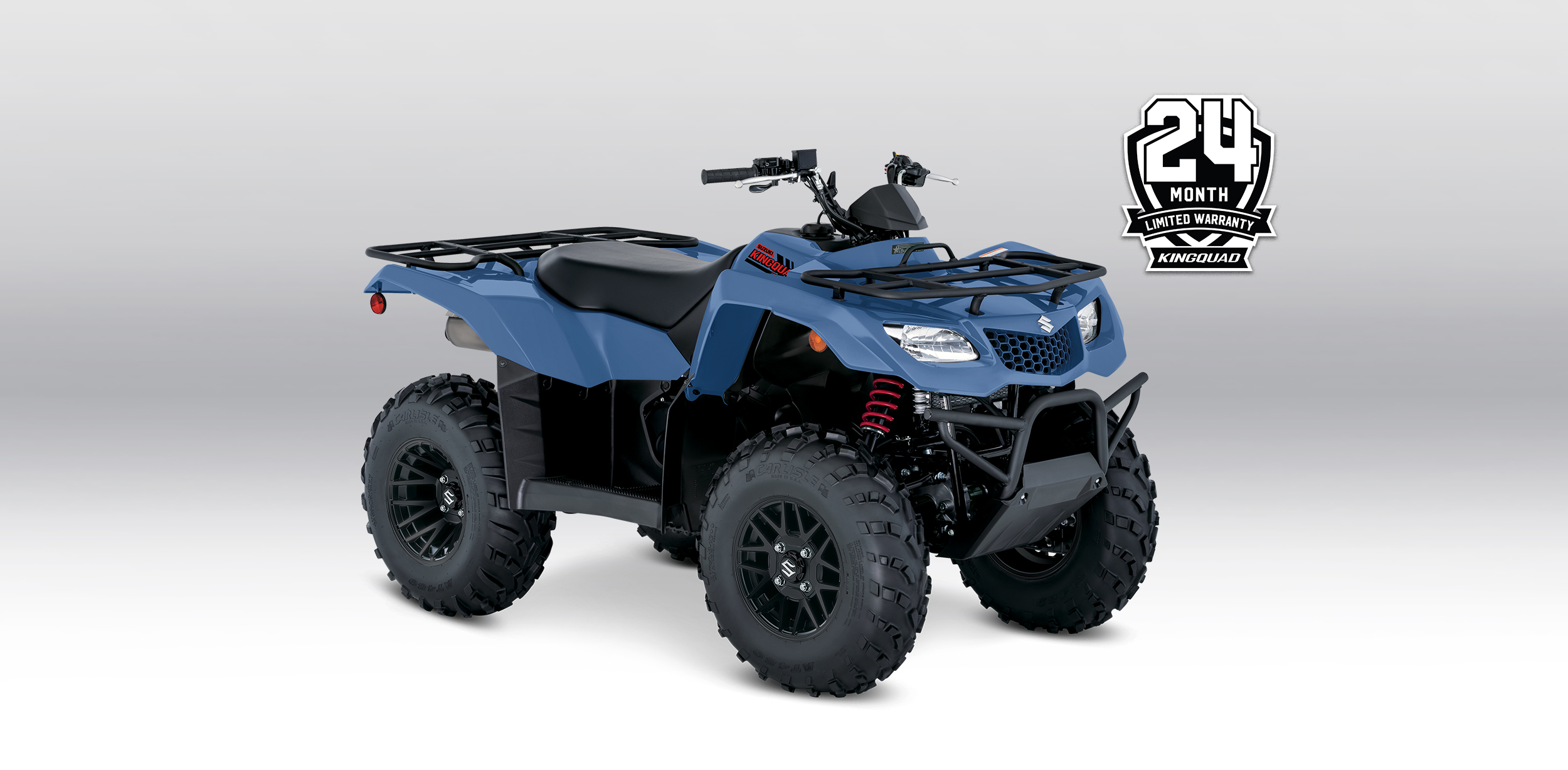

2025 KingQuad 400ASi SE
2025 KingQuad 400ASi SE Overview
In 1982, Suzuki introduced the world's first 4-wheel ATV. Today, Suzuki ATVs are everywhere. From the most remote areas to the most challenging tasks, you will find the KingQuad powering a rider onward. Across the board, our KingQuad lineup is an exceptional group of ATVs.
Whether you are working hard or getting away from it all, the 2025 Suzuki KingQuad 400ASi SE helps you every step of the way. The fully automatic QuadmaticTM transmission has 2WD and 4WD modes to handle rough trail conditions while completing even the most demanding chores. Along with exceptional engine...
Gallery
There was an error loading these images. please try again later!
Key Features
View Product BrochureThe KingQuad 400Asi SE’s fuel-injected, 376cc, four-stroke, four-valve engine produces efficient power and drivability.
Suzuki's class-leading fuel injection smooths power output, especially in the mid- to high-range, and provides excellent cold starting. The system uses 3-D maps for optimum ignition, creating responsive yet environmentally compliant performance.
Suzuki Advanced Cooling System (SACS) uses an oil cooler and thermostat-controlled cooling fan to shed engine heat during hard work or cargo hauling.
The Engine Control Unit (ECU) has slip control logic, which adjusts fuel injector duration and timing to improve drivability and grip in loose/slippery conditions.
The QuadmaticTM transmission is a fully automatic, CVT (continuously variable transmission) with selectable high/low sub-transmission and reverse helping provide maximum traction and fuel efficiency.
Automotive gate-type gearshift lever lets riders conveniently choose high or low range, neutral, or reverse.
Select 2WD and 4WD with the flip of a handlebar-mounted lever. The shaft drive system is dependable and durable and is almost maintenance-free.
Torque-sensing limited-slip front differential provides maximum traction and light steering when in 4WD mode.
Independent front A-arm suspension offers smooth performance and remarkable ground clearance with 6.7 inches (170.1 mm) of wheel travel.
A swingarm rear suspension with 6.7 inches (170.1 mm) of wheel travel and twin shock absorbers provide agile handling and plush riding.
Dual front hydraulic disc brakes feature calipers with large, 34mm pistons and wide brake-pad surface areas for ample stopping power while providing outstanding durability. Lightweight and durable plastic skid plates are sturdy to withstand trail pounding, yet slippery to let obstacles easily slide under.
Large, 25-inch Carlisle® tires with aggressive tread offer consistent traction in wet conditions, yet make for a quiet, smooth ride on hard-packed trails.
LCD instrumentation includes a speedometer, odometer, trip meter, hour meter, clock, fuel gauge, and indicators for reverse, neutral, oil, and FI (fuel injection).
Dual 35-watt headlights (with high- and low-beam settings) are part of the distinctive KingQuad grille appearance. Bright taillight helps make the 400ASi SE more visible in dark conditions.
Automotive-style DC power outlet is included on the front fender.
Winch-ready mounts and wire conduit make winch installation simple.
The unique Armored Blue Gray bodywork features sharply angled, high-clearance fenders while the full steel cargo racks help tackle any ranch or outdoors task.
Suzuki's plush T-shaped seat delivers rider mobility during sport or difficult terrain riding. Overall length is under 82 inches (208 cm), so the KingQuad fits into a 6.5-foot truck bed for easy transportation.
Heavy-duty front and rear cargo racks let riders take advantage of the 400ASi SE’s superb load capabilities. Wrinkle paint finishes on the racks and front bumper are durable and scratch- resistant.
Full floorboards with integrated, raised footpegs
Suzuki’s 24-month limited warranty is much longer than most ATV warranties. Longer coverage and other benefits are available through Suzuki Extended Protection (SEP).
A variety of Genuine Suzuki Accessories are available, including winches, windshield, front and rear bumpers, snowplow, aluminum skid pans, rack extensions, utility box, and more.
Minimum rider age: 16 years old
Specifications
- Engine376cc (22.94 cubic in.), 4-stroke, air-cooled with SCAS, OHC single cylinder
- Bore x Stroke82.0 mm x 71.2 mm (3.228 in. x 2.803 in.)
- Compression Ratio9.0:1
- Fuel SystemSuzuki electronic fuel injection
- StarterElectric
- LubricationWet sump
- TransmissionAutomatic variable ratio (V-belt), with high/low-range and reverse
- ClutchDry shoe, automatic, centrifugal type
- Driven Wheels2WD and 4WD
- Final DriveShaft drive
- Suspension FrontIndependent, double wishbone, coil spring, oil damped
- Suspension RearSwing-arm type, coil spring, oil damped
- Brakes FrontDisc brakes, twin rotors
- Brakes RearSingle drum brake
- Tires FrontAT25 x 8-12, tubeless type x 2
- Tires RearAT25 x 10-12, tubeless type x 2
- Fuel Tank Capacity16.0 L (4.2 US gal.)
- ColorTerra Green or Flame Red
- IgnitionElectronic ignition (transistorized)
- Headlight12V 35/35W (HS1) × 2
- Tail Light12V 21/5W
- Overall Length2060 mm (81.1 in.)
- Overall Width1145 mm (45.1 in.)
- Overall Height1220 mm (48.0 in.)
- Wheelbase1270 mm (50.0 in.)
- Ground Clearance250 mm (9.8 in.)
- Seat Height840 mm (33.1 in.)
- Curb Weight265 kg (628 lb.)
- Warranty24-month limited warranty
- ExtensionLonger coverage periods with other benefits are available through Suzuki Extended Protection (SEP)
