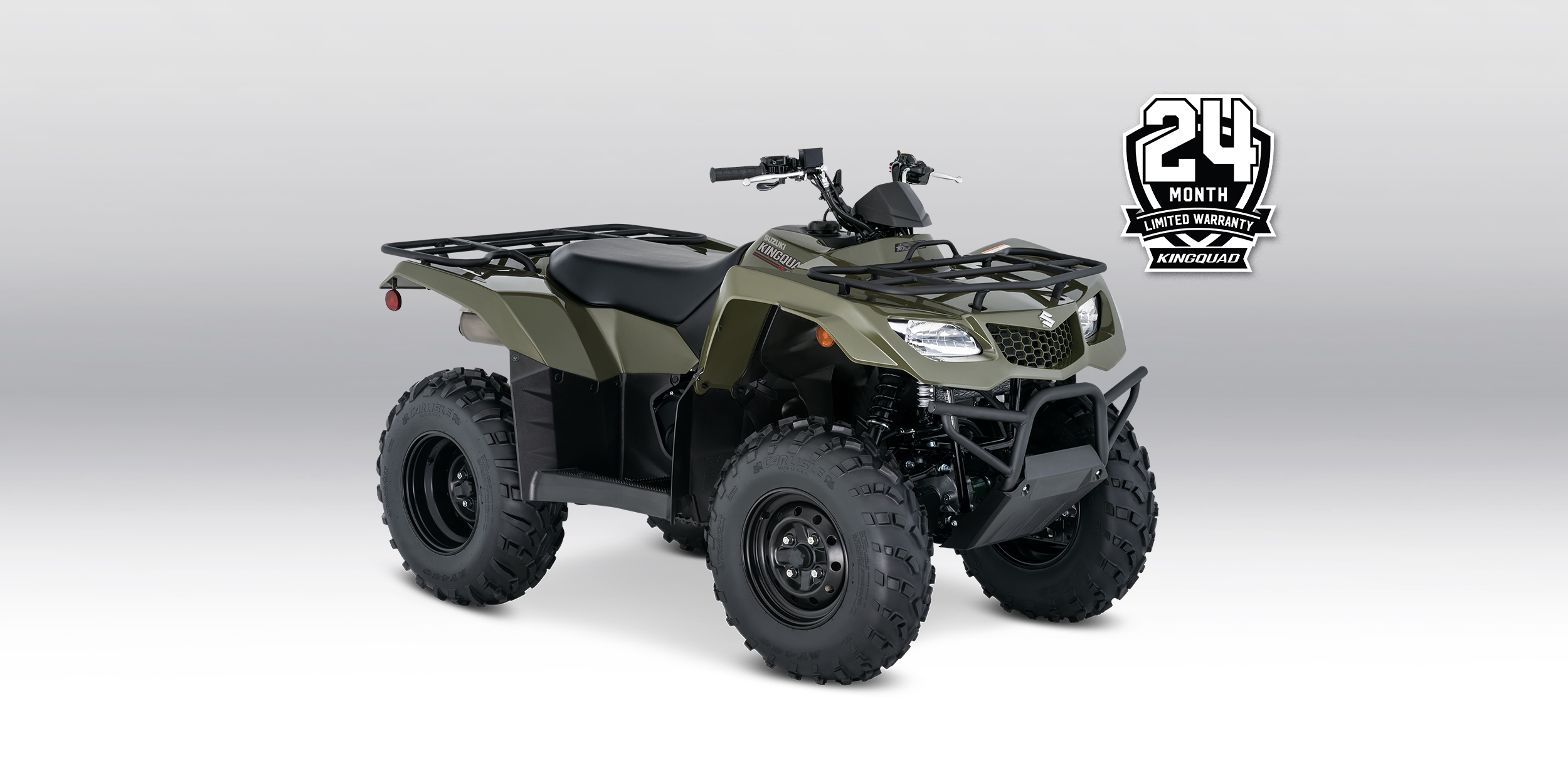

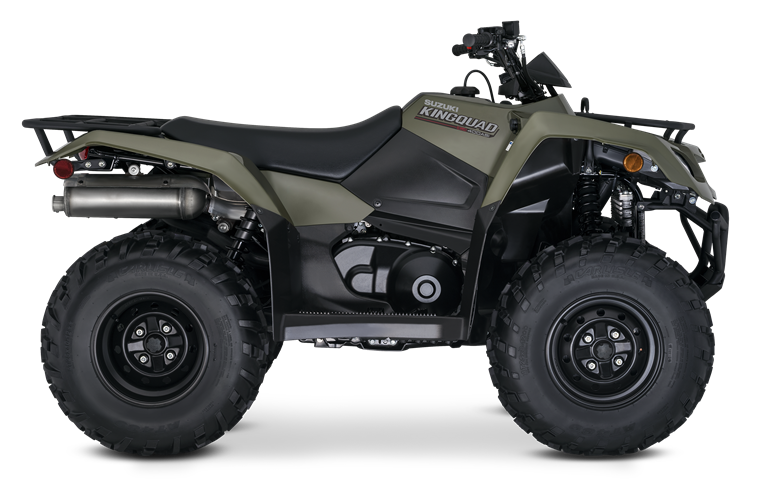

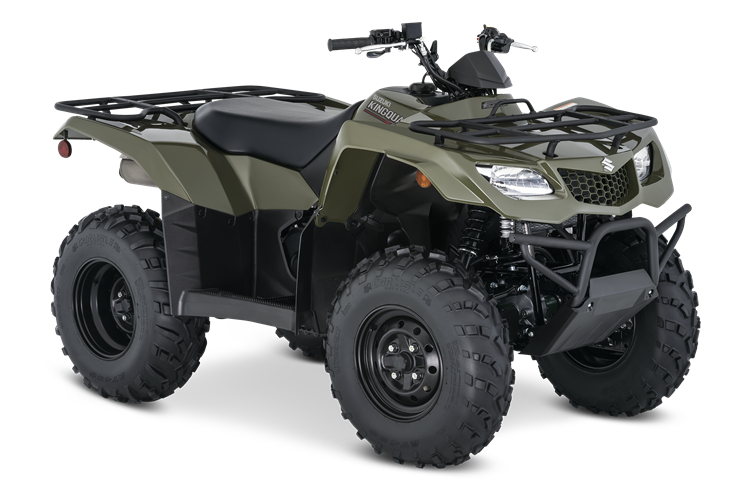

2024 KingQuad 400ASi

2024 KingQuad 400ASi Overview

In 1983, Suzuki introduced the world's first 4-wheel ATV. Today, Suzuki ATVs are everywhere. From the most remote areas to the most everyday tasks, you will find the KingQuad powering a rider onward. Across the board, our KingQuad lineup is an exceptional group of ATVs.

Whether you are working hard or getting away from it all, the 2024 Suzuki KingQuad 400ASi helps you every step of the way. The fully automatic QuadmaticTM transmission has 2WD and 4WD modes to manage rough trail conditions while completing even the most demanding chores. Along with exceptional engine...

Features

Powerful, fuel-injected, 4-stroke engine is easy on gas

Large fuel tank and plush seat deliver extended, comfortable riding range

Fender-mounted shifter controls the QuadMatic™ transmission

Select 2WD or 4WD via a handlebar-mounted lever

Rugged bodywork and full racks to tackle any task


The KingQuad 400ASi’s fuel-injected 376cc four-stroke, four-valve engine produces efficient power and driveablity.

Suzuki's class-leading fuel injection smooths power output, especially in the mid-to-high range, and provides excellent cold starting. The system uses 3-D maps for optimum ignition, creating responsive yet environmentally compliant performance.

Suzuki Advanced Cooling System (SACS) uses an oil cooler and thermostat-controlled cooling fan to shed engine heat during hard work or cargo hauling.

Push-button electric starting has a start-in-gear function allowing starting without shifting to neutral (as conditions permit).

The Engine Control Unit (ECU) has slip control logic, which adjusts fuel injector duration and timing to improve drivability and grip in loose/slippery conditions.

Highly efficient iridium spark plug contributes to better combustion, cleaner emissions, and longer plug life. Engine starting under low temperature is also improved.

Pulsed-secondary AIR-injection (PAIR) system and catalyst-equipped exhaust system help the ATV comply with Environmental Protection Agency (EPA) emission standards while maintaining a high level of performance.


The QuadMatic™ transmission is a fully automatic, CVT (continuously variable transmission) with selectable high/low sub-transmission and reverse for maximum traction and fuel efficiency.

Automotive gate-type gearshift lever lets you conveniently choose high or low range, neutral, or reverse.

Select 2WD and 4WD with the flip of a handlebar-mounted lever. The shaft drive system is reliable and durable and is nearly maintenance-free.

Torque-sensing limited-slip front differential provides maximum traction and light steering when in 4WD mode.

An advanced engine-braking system minimizes free-wheeling with the throttle off to help control the ATV during descents.

The ECU has a Reverse Mode that monitors vehicle speed so higher engine RPM can be used when getting out of mud or loose soil in reverse mode.


Sporty bodywork features sharply angled, high-clearance fenders.

Suzuki's plush T-shaped seat delivers rider mobility during sport or difficult terrain riding. Overall length is under 82 inches (208 cm), so the KingQuad fits into a 6.5-foot truck bed for easy transportation.

Independent front A-arm suspension offers smooth performance and remarkable ground clearance with 6.7 inches (170.1 mm) of wheel travel.

A swingarm rear suspension with 6.7 inches (170.1 mm) of wheel travel and twin shock absorbers provides agile handling and plush riding.

Dual front hydraulic disc brakes feature calipers with large, 34mm pistons and wide brake-pad surface area for increased stopping power and outstanding durability. Lightweight and strong plastic skid plates are sturdy to withstand trail pounding, yet slippery to let obstacles slide below.

Lightweight and strong plastic skid plates are sturdy to withstand trail pounding, yet slippery to let obstacles slide below.

Large, 25-inch Carlisle tires with aggressive tread offer consistent traction in wet conditions, yet make for a quiet, smooth ride on hard-packed trails.

The KingQuad 400ASi rides on strong steel wheels with a durable, powder-coated matte black finish.


Dual 35-watt headlights (with high and low settings) are part of the distinctive KingQuad grille appearance. Bright tail light helps make the ATV visible in dark conditions.

Heavy-duty front and rear cargo racks let you take advantage of the ATV’s superb load capabilities. Wrinkle paint finish on the racks and front bumper is durable and scratch resistant.

LCD instrumentation includes speedometer, odometer, trip meter, hour meter, clock, fuel gauge and indicators for reverse, neutral, oil and FI (fuel injection).

Automotive-style DC power outlet is included on front fender.

Winch-ready mounts and wire conduit make winch installation simple.

Large, 4.2-gallon (16.0 L) fuel tank provides outstanding riding range.

Full floorboards with integrated raised footpegs provide protection.


24-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*

*Subject to separate coverage for certain parts and the exclusions and limitations described in the New ATV Limited Warranty.

A variety of Suzuki Genuine Accessories are available, including winches, windshield, front and rear bumpers, snowplow, aluminum skid pans, rack extensions, utility box, and more.

Minimum Operator Age: 16 Years Old

This model is not eligible for sale in California per California Air Resource Board (CARB) off-highway vehicle regulations.


Specifications

  • Engine376cc (22.94 cubic in.), 4-stroke, air-cooled with SCAS, OHC single cylinder
  • Bore x Stroke82.0 mm x 71.2 mm (3.228 in. x 2.803 in.)
  • Compression Ratio9.0:1
  • Fuel SystemSuzuki electronic fuel injection
  • StarterElectric
  • LubricationWet sump
  • TransmissionAutomatic variable ratio (V-belt), with high/low-range and reverse
  • ClutchDry shoe, automatic, centrifugal type
  • Driven Wheels2WD and 4WD
  • Final DriveShaft drive
  • Suspension FrontIndependent, double wishbone, coil spring, oil damped
  • Suspension RearSwing-arm type, coil spring, oil damped
  • Brakes FrontDisc brakes, twin rotors
  • Brakes RearSingle drum brake
  • Tires FrontAT25 x 8-12, tubeless type x 2
  • Tires RearAT25 x 10-12, tubeless type x 2
  • Fuel Tank Capacity16.0 L (4.2 US gal.)
  • ColorTerra Green or Flame Red
  • IgnitionElectronic ignition (transistorized)
  • Headlight12V 35/35W (HS1) × 2
  • Tail Light12V 21/5W
  • Overall Length2060 mm (81.1 in.)
  • Overall Width1145 mm (45.1 in.)
  • Overall Height1220 mm (48.0 in.)
  • Wheelbase1270 mm (50.0 in.)
  • Ground Clearance250 mm (9.8 in.)
  • Seat Height840 mm (33.1 in.)
  • Curb Weight265 kg (628 lb.)
  • Warranty24-month limited warranty
  • ExtensionLonger coverage periods with other benefits are available through Suzuki Extended Protection (SEP)
