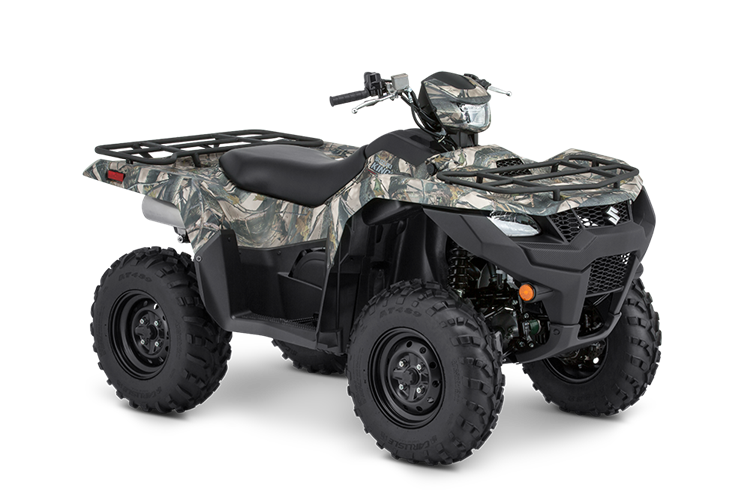

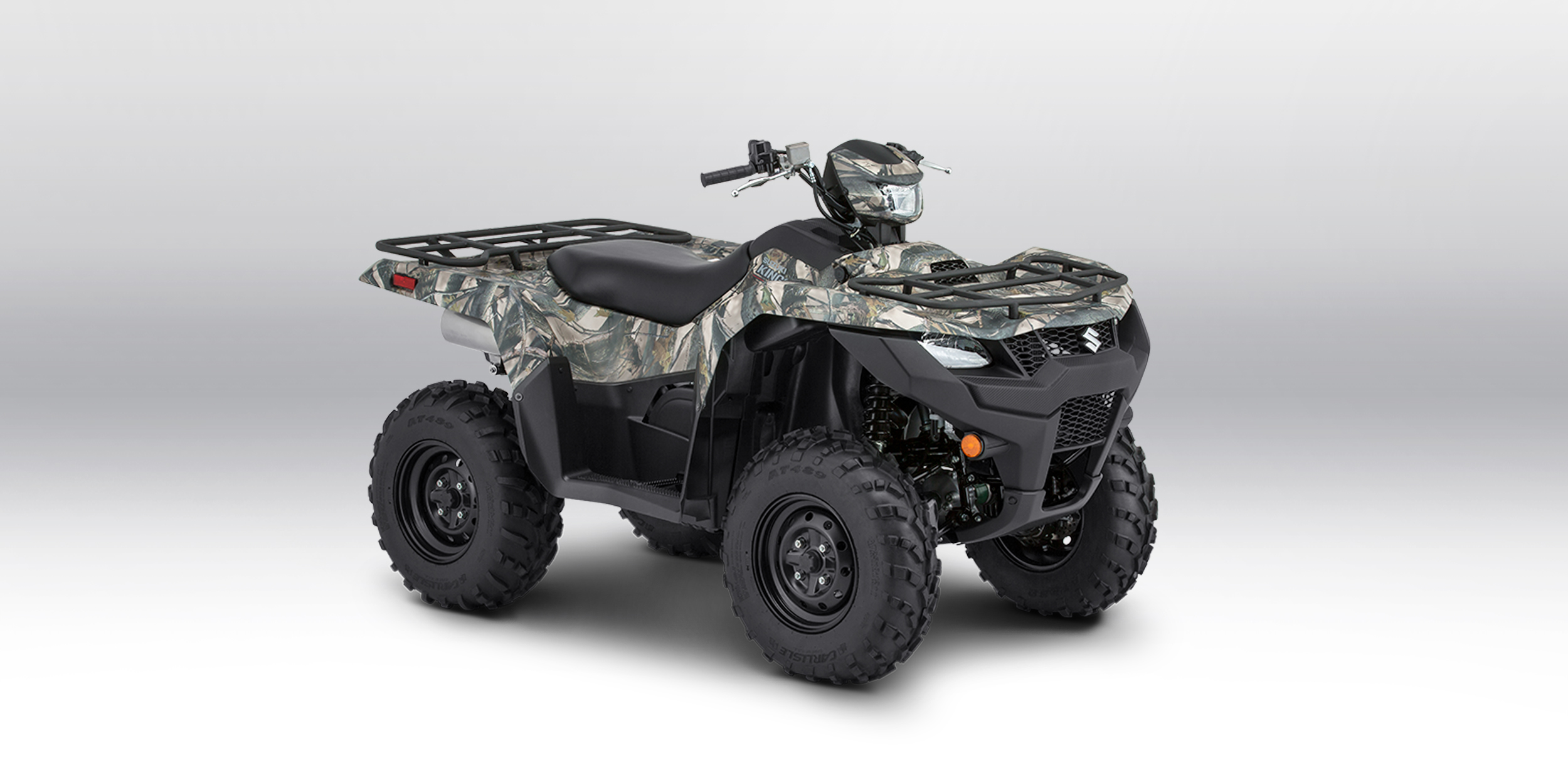

2019 KingQuad 500AXi Power Steering Camo
2019 KingQuad 500AXi Power Steering Camo Overview
The KingQuad 500AXi Power Steering Camo is not just an ATV, it's a KingQuad ATV. Suzuki, the inventor of the 4-wheel ATV, continues to make the world's best sports-utility quad better and more capable than ever. Edgy and dynamic bodywork in True Timber XD3 Camouflage surrounds an impressive list of features on the KingQuad. The KingQuad's chassis, based around a strong frame, helps this ATV tackle just about any riding terrain while being able to help you with any chore thanks to an impressive towing capacity of 1332 pounds. Steering a KingQuad is easy thanks to carefully calibrated...
There was an error loading these images. please try again later!
Bold, angular styling, and a relaxed riding position with wide range of colors, including True Timber XD3 Camouflage
Generous towing capacity, fully independent suspension, and easy to ride on any terrain
Torque-rich, EFI-fed engine, and Quadmatic™ transmission with effective engine braking
Fender- and handlebar-mounted headlights, LED tail light plus full LCD instrument panel
The powerful 493cc, SOHC, single-cylinder, liquid-cooled, 4-stroke engine is tuned to produce a wide powerband with strong top-end power.
Its cylinder is canted forward for a low center of gravity, resulting in reduced engine height and lower seat height. The engine also features a balancer shaft for smooth operation.
The compact 4-valve cylinder head has large intake valves and straight intake ports for superb cylinder charging efficiency.
A lightweight aluminum cylinder uses SCEM (Suzuki Composite Electrochemical Material) coating for excellent heat transfer and ring sealing, resulting in superb combustion chamber efficiency.
Advanced Suzuki Fuel Injection improves throttle response and fuel efficiency while delivering power consistently across the full rev-range, and improves engine starting in all conditions.
The KingQuad easily achieves US emissions compliance, including California models that conform to the state’s stringent evaporative emissions standard (eligible for green sticker registration).
High-capacity aluminum radiator with large diameter, thermostatically controlled cooling fan provides stable engine operating temperature.
The Quadmatic™ CVT-type automatic transmission provides versatility and convenience with a fender-mounted gate-type shifter for high/low range selection. Its advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during steep descents.
A compact torque-sensing limited-slip front differential offers potent traction plus light steering. A differential-lock system provides serious 4WD traction.
Handlebar-mounted push-button controls permit easy selection between 2WD, 4WD and differential-lock 4WD. An override button on the left handlebar can be used to override the normal speed limiter when stuck in the mud.
To increase rider comfort, make the ATV easier to ride on any terrain, and increase towing capacity, the KingQuad’s frame has thick-wall tubes and reinforced brackets in key areas.
The base steering characteristics are now tuned to an “under-steer” condition for reduced effort and tighter turning in tight conditions. This permits higher, more comfortable handlebars to be used.
The KingQuad’s advanced electric power steering system is higher capacity than the prior generation for significantly reduced steering effort that also damps vibration and jolts to the rider.
The bold, angular bodywork features high-clearance fenders that offer great protection for the rider from flying debris. Refined panels simplify maintenance needs, such as oil level checks and fuel and air filter service.
Independent double A-arm front suspension (6.7 inches of wheel travel) includes large diameter, gas-charged shock absorbers with 5-way spring preload adjustment.
Fully independent, A-arm/I-beam rear suspension with 7.7 inches of wheel travel includes large diameter, gas-charged shock absorbers with 5-way spring preload adjustment.
A larger diameter rear stabilizer bar with compliant bushings helps control body movement while reducing shocks to the rider.
The dual hydraulic front disc brakes combine high-friction brake pad material, fluid lines, and a lever ratio to provide optimal braking performance.
The sealed, multi-plate rear brake system’s foot brake lever ratio provides great rider control. The rear brake’s clutch-type design means high durability, reduced unsprung weight, and low maintenance.
High traction 25-inch CARLISLE tires are mounted on strong steel wheels with a durable, powder-coated matte-black finish.
Suzuki's plush T-shaped seat delivers rider mobility during spirited or difficult terrain riding.
Polyethylene skid plates provide protection with minimal resistance over rocks and rough terrain. Durable plastic guards protect the front and rear half shafts.
The 35-watt handlebar-mounted headlight illuminates the trail in the direction you are steering the ATV. Dual 35-watt headlights (with high and low settings) are part of the KingQuad's distinctive bodywork.
The low-draw and bright LED tail light helps make the ATV visible in dark conditions while conserving power.
A receiver-type trailer hitch mount makes it easy to select the type of equipment you want to move with the KingQuad’s generous towing capacity (up to 1322 pounds).
Winch-ready mounts and wire conduit make winch installation simple.
The multi-function instrument panel has improved appearance and visibility and provides service reminders based on running time or mileage. The instrumentation includes LCD readouts for speedometer, odometer, twin trip meter, hour meter, clock, fuel level, driving range, and drive mode. There are LED indicators for high, low, neutral, reverse, 2WD/4WD, and differential-locked 4WD and LED cautions for fuel injection and engine temperature.
High-output, three-phase charging system feeds an 18-amp maintenance-free battery for abundant power for easy starting and accessory use. A sealed 12V accessory outlet is standard.
The large 4.6 gallon (17.5 L) fuel tank is positioned for a low center of gravity. It includes a vacuum-operated petcock and a ratchet-style filler cap (which prevents overtightening so it can be easily unscrewed for refilling).
A large 4.0-liter storage compartment is centrally located to the rear of the ATV adjacent to the existing 4.0-liter left-side compartment, providing generous cargo capacity. The 2.8-liter water-resistant front storage compartment includes an easy access screw-on cap.
The rugged steel-tube cargo racks have wrinkle paint finish for durability and scratch resistance.
Full floorboards with integrated raised footpegs provide protection.
A variety of Suzuki Genuine Accessories are available, including winches, windshield, front and rear bumpers, a quick-release snow plow, aluminum skid pans, rack extensions, utility box and more.
12-month limited warranty. Longer coverage periods with other benefits available through Suzuki Extended Protection (SEP).*
*Subject to separate coverage for certain parts and the exclusions and limitations described in the New ATV Limited Warranty.
Minimum Operator Age: 16 Years Old
- Engine493cc (30.1 cubic in.), 4-stroke, liquid-cooled, 4-valve, OHC single cylinder
- Bore x Stroke87.5 mm x 82.0 mm (3.40 in. x 3.20 in.)
- Compression Ratio9.9:1
- Fuel SystemSuzuki electronic fuel injection
- LubricationWet sump
- TransmissionAutomatic variable ratio (V-belt), with high/low-range, and reverse
- ClutchDry shoe, automatic, centrifugal type
- Driven Wheels2WD, 4WD & 4WD differential lock
- Final DriveShaft drive
- Suspension FrontIndependent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
- Suspension RearIndependent, double wishbone, coil spring, gas charged and oil damped with 5-way preload adjustable shock absorbers
- Brakes FrontDisc brakes, twin rotors
- Brakes RearSealed oil-bathed multi-disc
- Tires FrontAT25 x 8-12**, tubeless type x 2
- Tires RearAT25 x 10-12**, tubeless type x 2
- Fuel Tank Capacity4.6 US gal. (17.5 L)
- ColorTrue Timber XD3 Camouflage
- IgnitionElectronic ignition (transistorized)
- Headlight12V 35/35W x 2 fender-mounted, 12V 35W x 1 handlebar mounted
- Tail LightLED
- Overall Length84.6 in. (2150 mm)
- Overall Width47.8 in. (1215 mm)
- Overall Height50.6 in. (1285 mm)
- Wheelbase50.6 in. (1285 mm)
- Ground Clearance10.2 in. (260 mm)
- Seat Height36.2 in. (920 mm)
- Curb Weight714 lbs. (324 kg.)
- Warranty12-month limited warranty
- ExtensionCoverage extension and additional benefits are available
